Sintered Titanium Felt for LGDL
https://www.toptitech.com/microporous-filter-components/sintered-titanium-felt-for-lgdl.html
Sintered titanium felt is a kind of porous material created from tiny titanium fibers that have been flattened down and annealed to provide a smooth, flat surface ideal for use in a variety of industrial applications. This unique material has a range of features that make it ideal for use in a wide range of applications.
In the production of hydrogen and fuel cells, sintered titanium felt is used as a Liquid/Gas Diffusion Layer (LGDL) in stacks, where it helps to distribute the reactant gases and provide electrical contact between the catalyst layer and the bipolar plate or current collector assembly. The material's high corrosion resistance, even under highly acidic and humid conditions, makes it an ideal material for use in these applications.
Parameters
Material: Titanium
Size: ≤1500*1200mm
Fiber size: 20 microns-40 microns
Thickness: 0.20mm, 0.25mm, 0.40mm, 0.60mm
Porosity: 60%-75%
※ Porosity and size can be customized.
Features
Porous structure: Sintered titanium fiber felt has an excellent porous structure, which provides high filtration efficiency and large dirt holding capacity.
Thermal conductivity: The material has strong thermal conductivity, making it an ideal material for use in high-temperature applications.
Precisionandaperture control:Sintered titanium fiber felthas precise precision and aperture control, which makes it suitable for use in applications where precise filtration is necessary.
Corrosion resistance: The material has high corrosion resistance, even under highly acidic and humid conditions, making it ideal for use inharsh environments.
Applications
Hydrogen and fuel cells: Sintered titanium fiber felt is used as a diffusion medium, such as Liquid/Gas Diffusion Layer (LGDL) in cathode-fed electrolyzers, where it helps to distribute reactant gases and provide electrical contact between the catalyst layer and the bipolar plate or current collector assembly.
Chemical and pharmaceutical industries: Sintered titanium fiber felt is used as a filtration medium, where its high filtration efficiency and precise aperture control are essential in ensuring the purity and quality of the final product.
Aerospaceand automotive industries: Sintered titanium fiber felt is used in heat exchangers and other high-temperature applications where its strong thermal conductivity and excellent mechanical properties are essential.
Water treatment: Sintered titanium fiber felt is used in water treatment applications, such as in wastewater treatment plants and desalination plants, where it helps remove impurities and contaminants from the water.
|
|

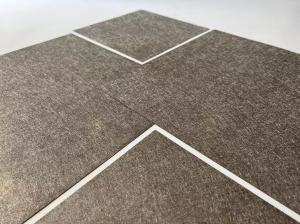

Sintered Titanium Felt for LGDL Images
|
